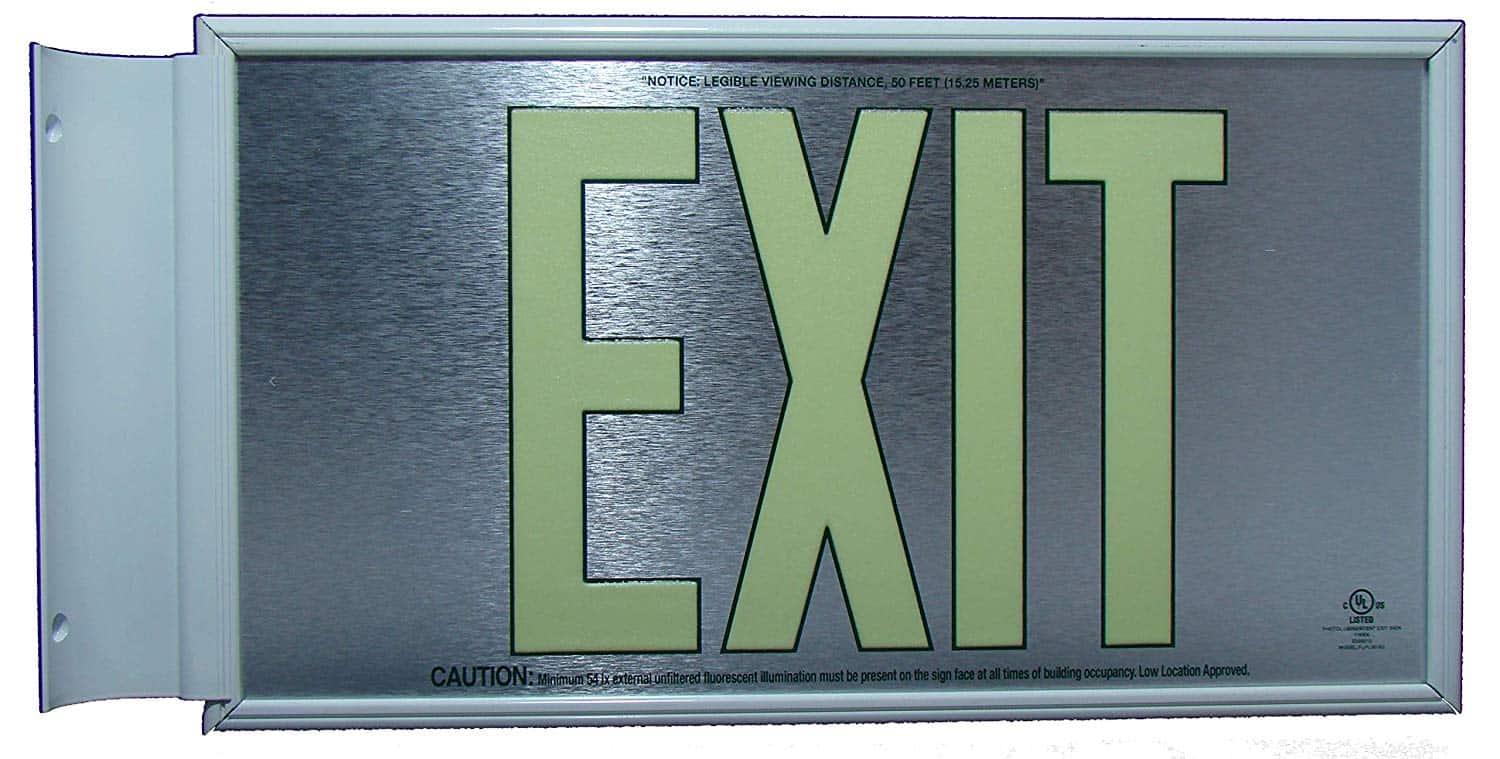

EXIT Sign. Brushed Aluminum. Green Lettering, 50 Feet, Double Sided with White Frame & White Mount (50SSG-DWW)

50ft Brushed Aluminum Green Trapping EXIT Sign Double Sided with White Frame and White Ceiling/Flag Mount Bracket (incl. Chevrons < >)

We need to verify inventory availability. Request a Quote for pricing and availability.

Request a Quote

Proudly Made in the USA Proudly Made in the USA

Estimated Shipping Time:  We will verify with the warehouse once you place your order.

Please email info@cableprotectorworks.com for quotes on bulk corporate and government orders or freight quotes on large items.

EXIT Sign. Brushed Aluminum. Green Lettering, 50 Feet, Double Sided with White Frame & White Mount (50SSG-DWW) Cable Protector Works - Elasco Wheel Chocks, Cable Protectors and Cable Ramps Cable Protectors

Lifetime Warranty

EXIT Sign. Brushed Aluminum. Green Lettering, 50 Feet, Double Sided with White Frame & White Mount (50SSG-DWW) Cable Protector Works - Elasco Wheel Chocks, Cable Protectors and Cable Ramps Cable Protectors

Very Fast Shipping

EXIT Sign. Brushed Aluminum. Green Lettering, 50 Feet, Double Sided with White Frame & White Mount (50SSG-DWW) Cable Protector Works - Elasco Wheel Chocks, Cable Protectors and Cable Ramps Cable Protectors

Made in the USA

Request a Quote
SKU: 50SSG-DWW Categories: , , , , , , , Tags: , , , , , , , , Brand:

Energy-Free Emergency Exit Signs
50 Foot Viewing Distance, UL 924 Listed
Brushed Aluminum Background



FEATURES

  • Fail-Safe Technology
  • Zero operating expenses–saves hundreds of dollars
    • No electricity usage
    • No battery replacements
    • No bulb replacements
    • No disposal fees
    • No testing labor
  • Low installation cost
    • No electrical service required
    • Quick mechanical setup
  • Non-toxic, non-radioactive
  • LEED Points Qualified
  • Low profile aluminum construction



TECHNICAL INFORMATION

  • Size: 8.5” x 15.75” with chevron kit
  • Background: Brushed Aluminum
  • Lettering: Photoluminescent lettering with a green or red outline
  • Illumination: High Visibility Chartreuse (light green/yellow)
  • Visibility: 50 feet
  • Directional:Chevron kit included, to be installed on-site
  • Construction: Aluminum body with stainless steel look



LIFE EXPECTANCY

  • 25+ years



INSTALLATION

  • Surface, flag or ceiling mounted options
  • Aluminum Frame and Mounting Bracket
  • Before installation it must be determined that there is a minimum of 5 foot-candles (54 lux) of fluorescent light on the face(s) of the sign at all times during building occupancy



APPLICATIONS

  • Both high level and low location mounting
  • Suitable for floor proximity installation



APPROVALS

  • Meets NFPA Life Safety Code 101 and OSHA
  • Meets International Building and Fire Codes
  • Listed through UL 924 for the USA and Canada
  • Listed with the State of California State Fire Marshal

Product Enquiry

Weight 3 lbs
Dimensions 1 × 16.75 × 9.5 in
Brand

Elasco Products
Life Expectancy

25+ Years
