Elasco Products ED8200-R Dropover, Single 8″ inch Channel, Red

Sale

Elasco-Products-Dropover-Cable-Cover-ED8200-R-1

Elasco-Products-Dropover-Cable-Cover-ED8200-R-2

Elasco-Products-Dropover-Cable-Cover-ED8200-R-6

Elasco-Products-Dropover-Cable-Cover-ED8200-R-5

Elasco-Products-Dropover-Cable-Cover-ED8200-R-4

Elasco-Products-Dropover-Cable-Cover-ED8200-R-3

Elasco-Products-Dropover-Cable-Cover-ED8200-R-7

Elasco-Products-Dropover-Cable-Cover-ED8200-R-8

Elasco ED8200-R Drop Over Cable Management, Single Channel, 8″ Channel Width, 1.75″ Channel Height, 37″ x 20″ x 2.75″, 7450 lb. per Tire Load Capacity, Red

ED8200 – BK _ R DropOver Technical Drawing

We need to verify inventory availability. Request a Quote for pricing and availability.

Proudly Made in the USA

Estimated Shipping Time: We will verify with the warehouse once you place your order.

Please email info@cableprotectorworks.com for quotes on bulk corporate and government orders or freight quotes on large items.

Lifetime Warranty

Very Fast Shipping

Made in the USA

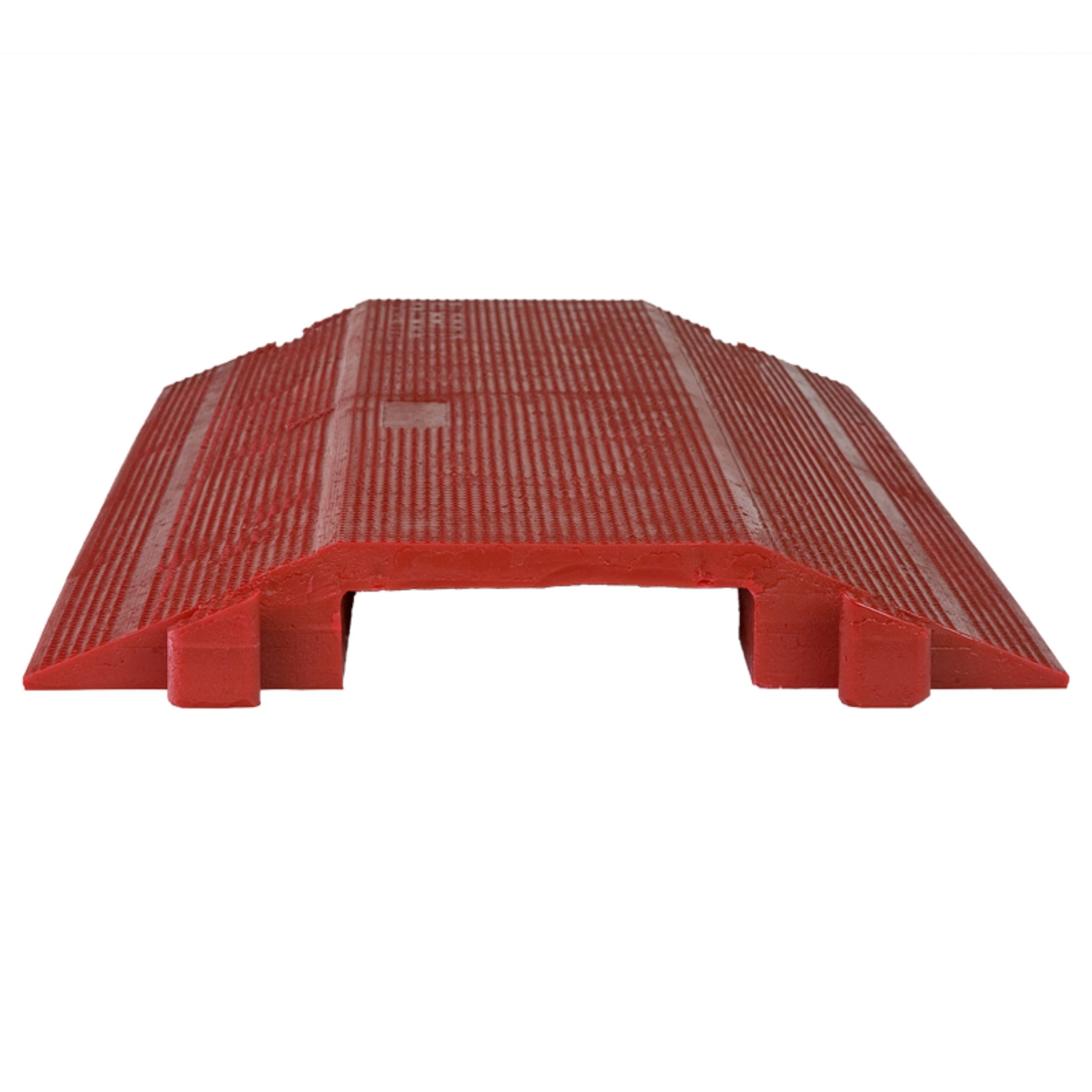

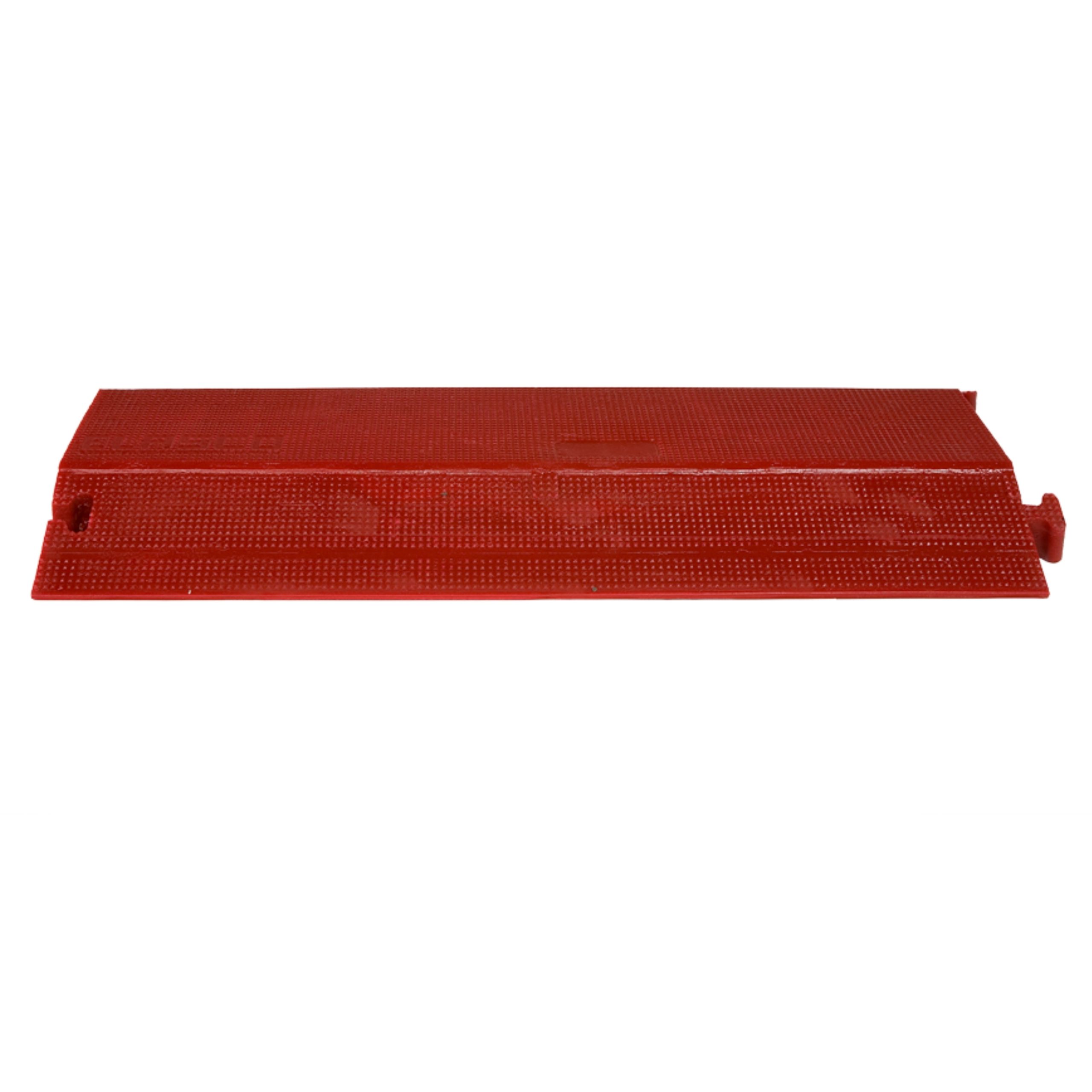

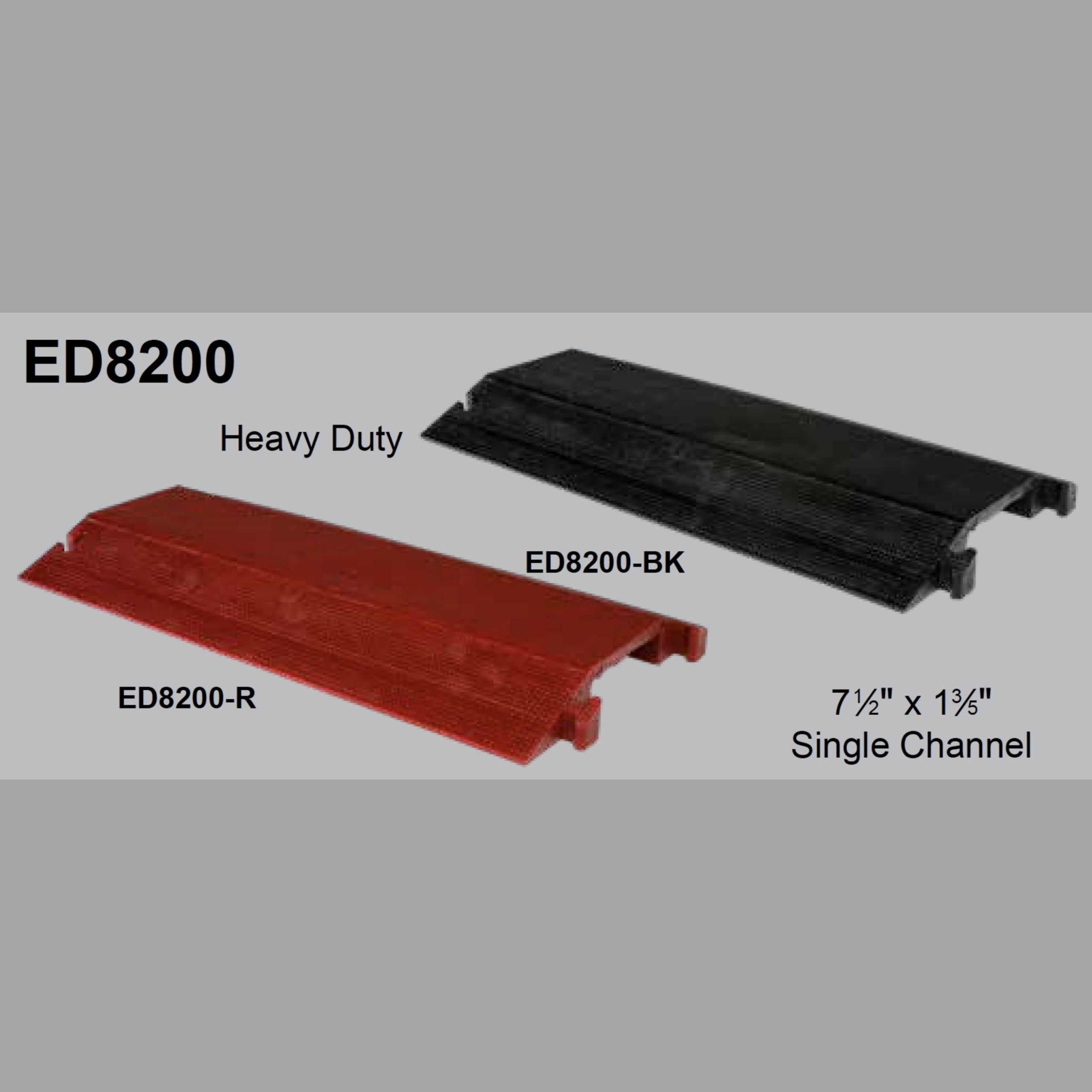

The Single-Channel 7.5 x 1.6″ Dropover, in red from Elasco Productsis a heavy-duty dropover designed to cover tubing and pipes in construction and similar sites and allow safe passage for vehicle and heavy pedestrian traffic.

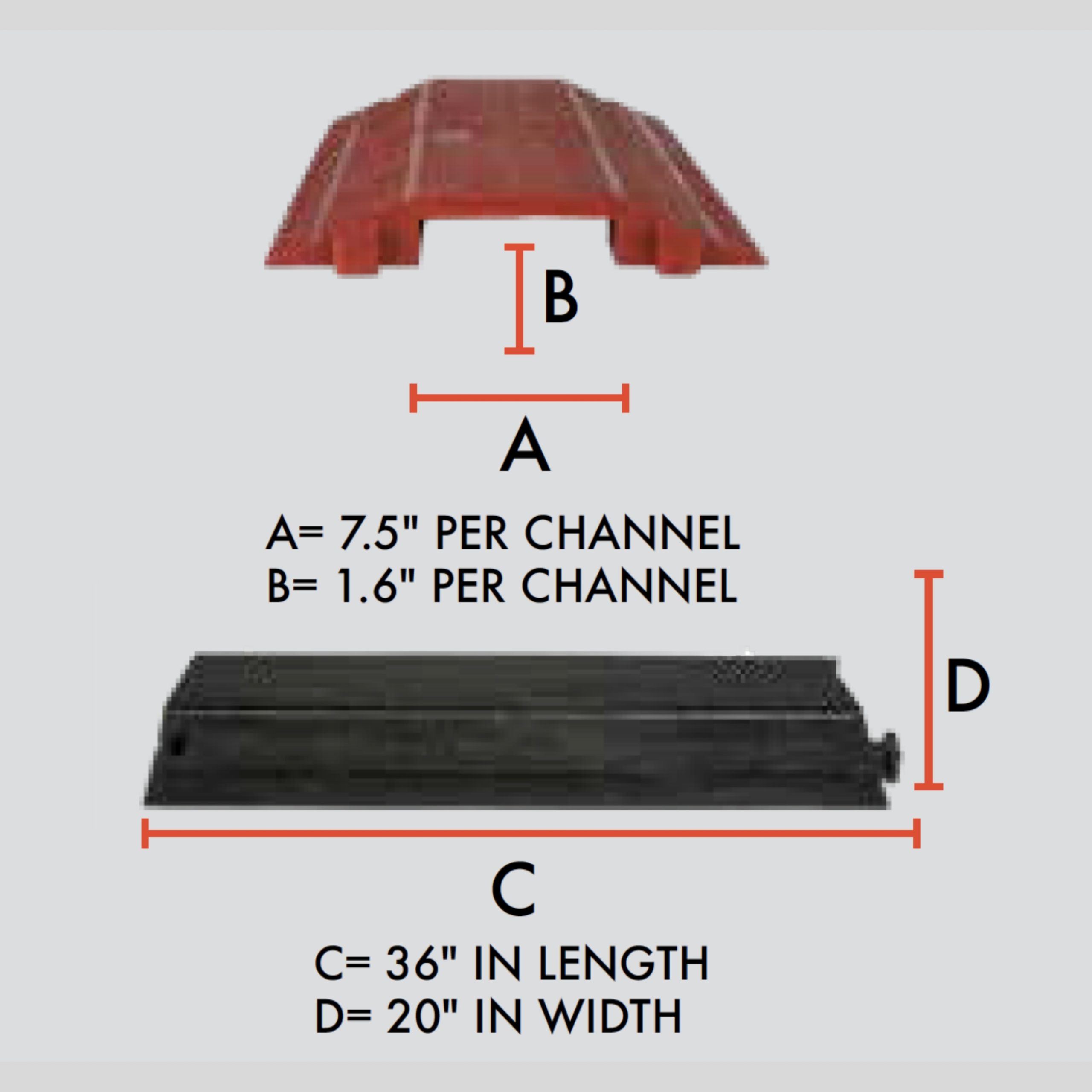

ED8200 – BK _ R DropOver Technical Drawing

This dropover is made from high-strength, solid-cast polyurethane and offers a secure interlocking design, allowing you to create reliable runs of whatever length you need (with additional units, sold separately). It’s slip-resistant to minimize accidental falls and is built to withstand extreme temperatures. The 7.5 x 1.6″ measurement is the size of the channel, while the outer size is larger (please see Specifications).

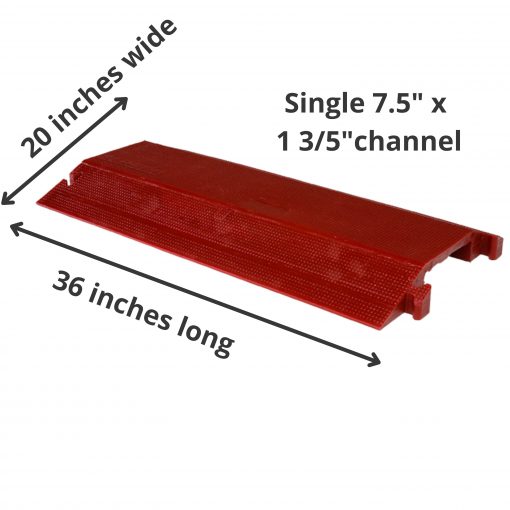

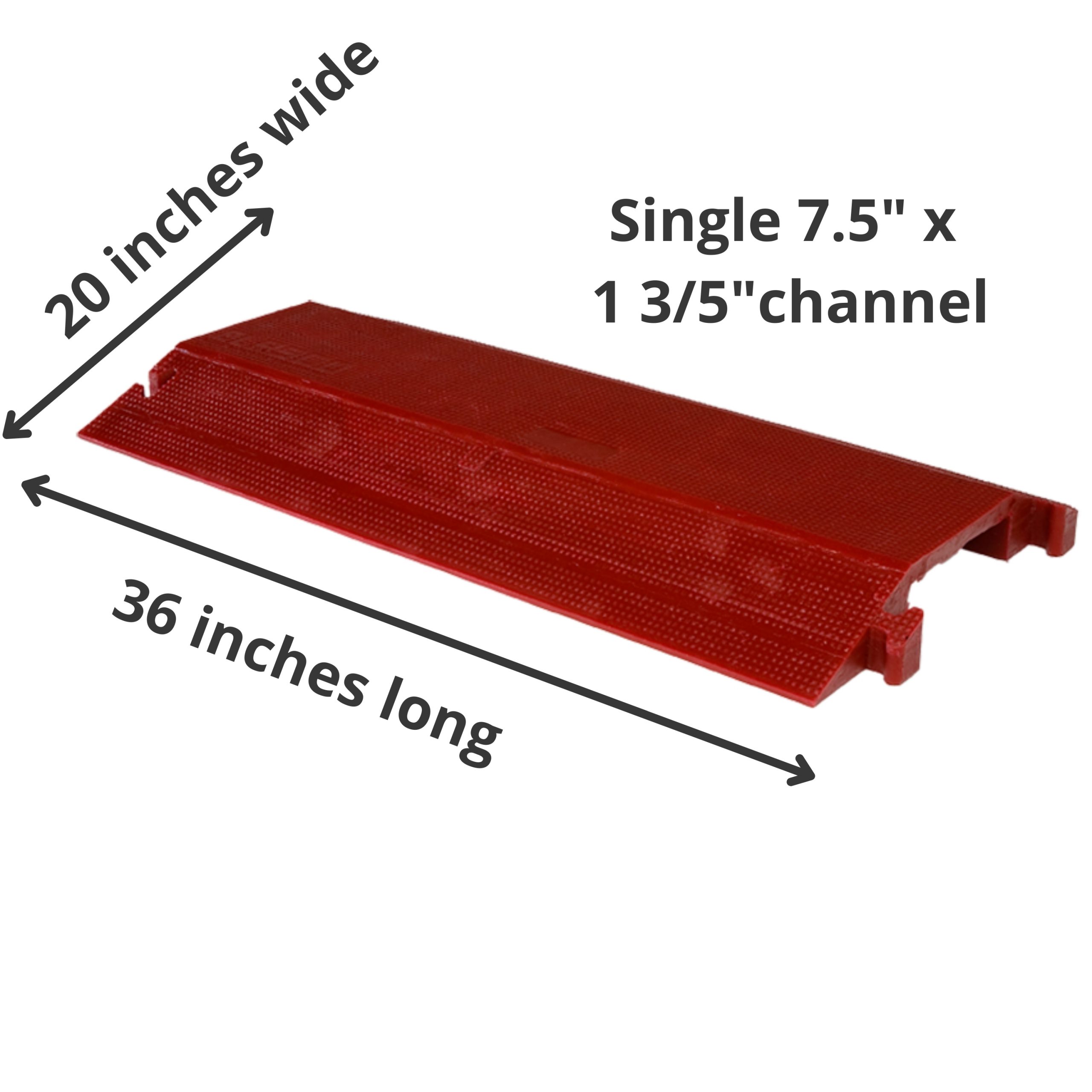

Interlocking single-channel dropover 7.5 x 1.6″ channel dimensions

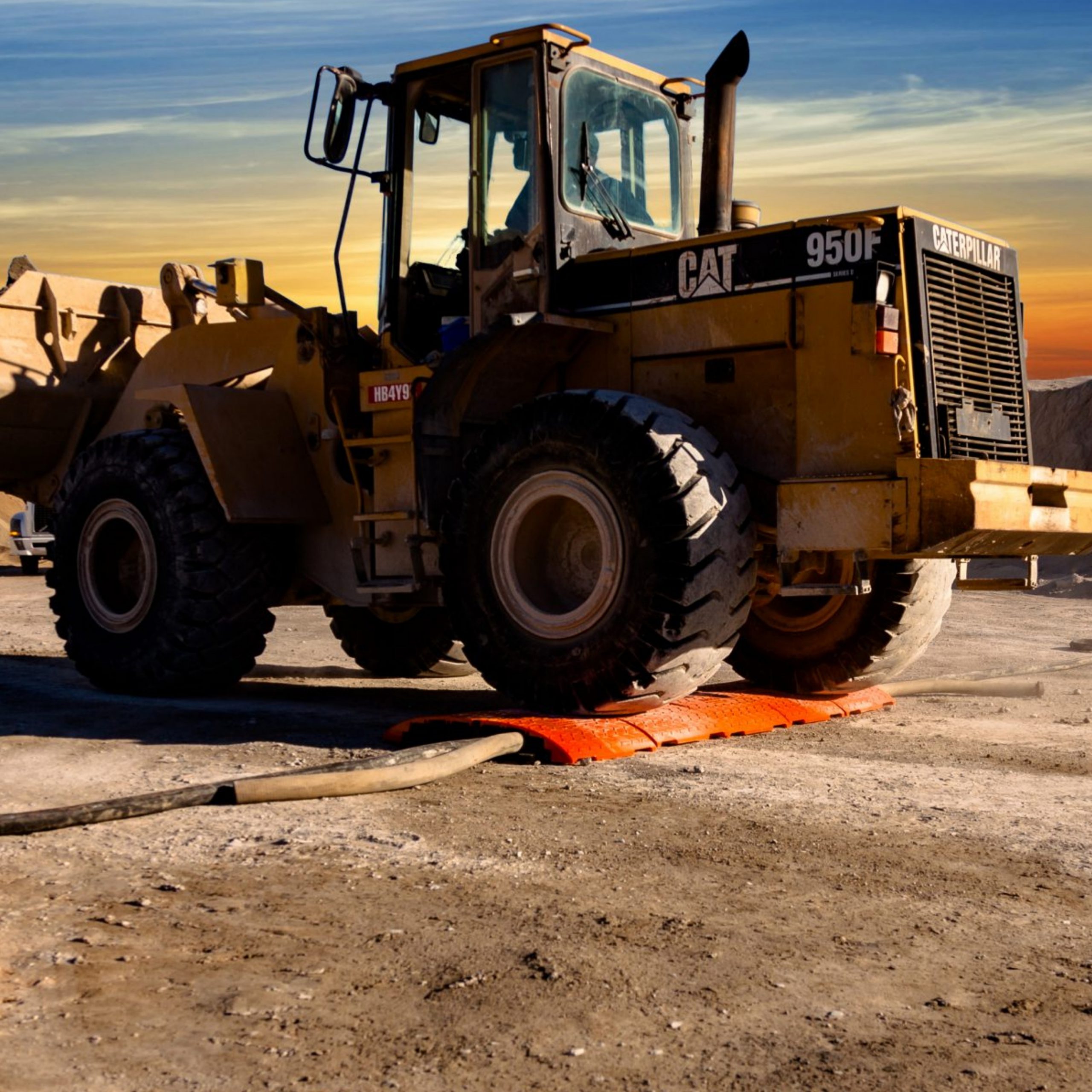

Lets you cover tubing and pipes in construction and similar sites and allow safe passage for vehicle and heavy pedestrian traffic
Made from flexible, solid-cast polyurethane material light, non-biodegradable, and generates less noise that metal, while offering superior tolerance to greases and chemical substances
Slip-resistant surface pattern
Strong, easy to secure, connection points
Built-in handles underneath the base for easy transportation
Easily cleaned and resistant to extreme weather, including blizzards and heat waves
Fully compliant with NEC, OSHA, REACH, RoHS
Made in the USA

ED8200 – BK _ R DropOver Technical Drawing

Product Enquiry

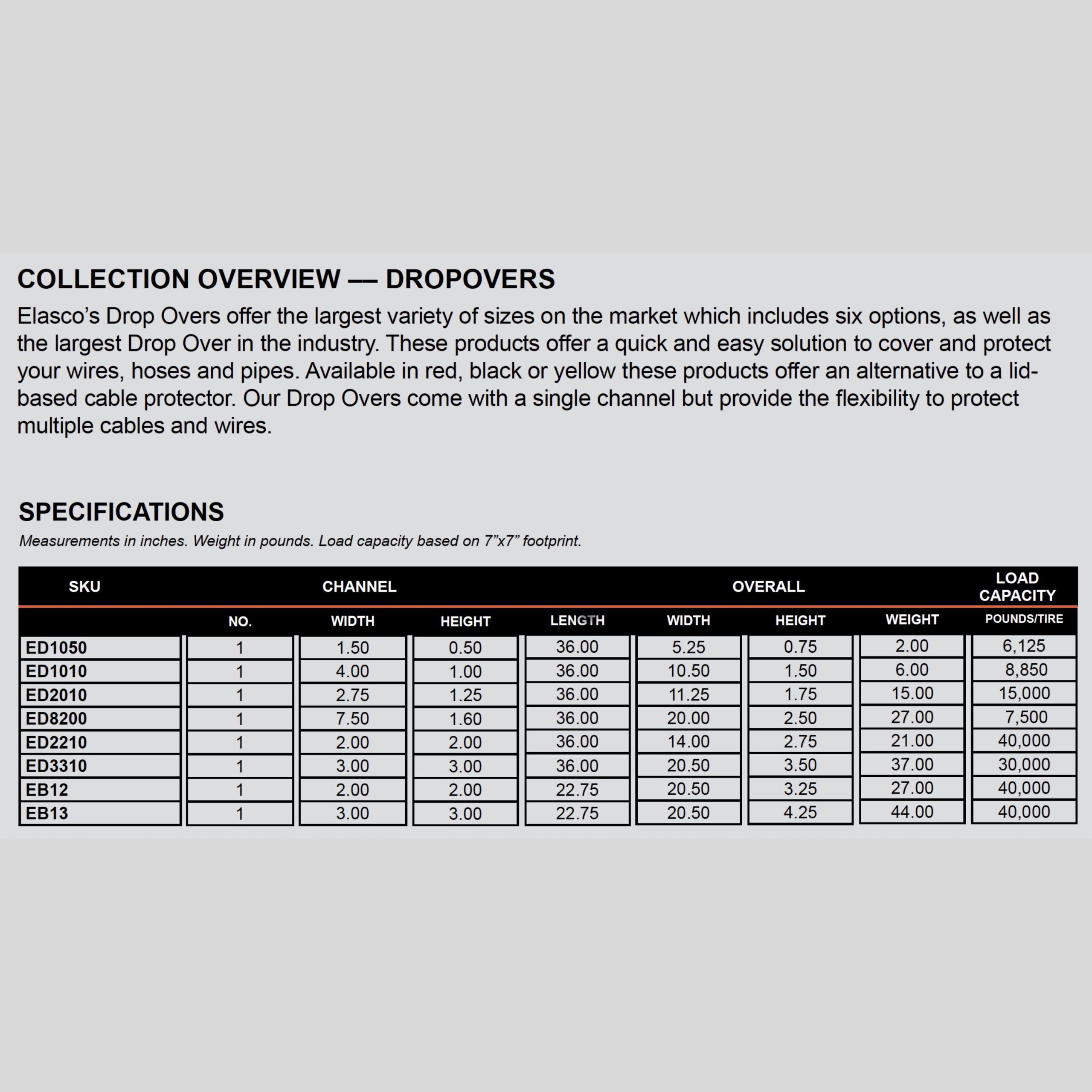

Weight	30 lbs
Dimensions	36 × 20 × 2.5 in
Cable Protector Color	Red
Channel Height	1.60 inches
Channel Width	7.50 inches
Overall Height	2.50 inches
Overall Length	36 inches
Overall Width	20 inches
Load Capacity	7,500 lbs per tire
Number of Channels	1
Weight	30 pounds
Brand	Elasco Products

Please email info@cableprotectorworks.com for quotes on bulk corporate and government orders or freight quotes on large items.

CABLE PROTECTORS, HOSE BRIDGES, CABLE RAMPS, ADA RAMPS, WHEEL CHOCKS, ALUMINUM EXIT SIGNS

CableProtectorWorks.com is the industry source for high quality urethane products including:

We are authorized distributors of Elasco Products that are made in the USA.

Elasco Products Cable Protectors can be grouped into following product lines.

Light Duty - Lite Guard Series - Elasco Lite Guard cable protectors come in size of 1 3/8" or smaller. They are smaller in size and weight but still designed for huge load bearing strength. These cable protectors are commonly used for vehicle or pedestrian traffic. One of the unique features of the Lite Guard and Mighty Guard Cable Protectors is that the lid seals into the base of the product, this prevents the lid from curling up and creating a trip hazard.
Heavy Duty - Ultra Guard Series and Mighty Guard Series - Elasco Heavy Duty Mighty Guard Cable Protectors come in sizes of 2" or greater. The Heavy Duty Ultra Guard Cable Protectors come in five and seven channels and can withstand up to 20,000 lbs of pressure per tire. They are also the only cable protectors in the industry that come with the push button lid that when closed remains securely shut. Both Mighty Guard and Ultra Guard Cable Protectors are now also available in ADA compliant ramps.
DropOvers and Hose Bridges - Elasco Dropovers come in four sizes with standard colors of either red or black. The channel width varies from 1.5 inches to 7.5 inches to handle different quantities of cables.
Extreme Duty - Xtreme Guard Series - Elasco Xtreme Duty Cable Protectors designed to withstand load bearing of between 300 - 500 tons for large mining trucks, and heavy construction vehicles. These items are commonly used as Fracking Ramps, Oil Field Ramps, Crossover Ramps and Industrial Ramps.

Whether your application is in construction, demolition, mining, audio-visual and events or any other, we carry a complete range of Cable Protectors, Cable Ramps, Cable Raceways for all cable thicknesses. Our cable protectors range from a single channel in a drop over configuration to 7 channels of varying channel widths. All cable protectors feature an interlocking system to create a cable path of any length. Most cable protectors are 36 inches in length and can be joined to form the length you need.

Cable Protectors are known by many names such as Fracking Ramps, Crossover Ramps, Heavy Duty Ramps, Industrial Ramps, Industrial Hose Bridges, Oil Field Hose Ramps, Pipe Crossovers and more. We probably have what you want but maybe use a different name. Please email us on sales@cableprotectorworks.com if you can't find what you are looking for.

Our sales team is on hand to learn about your project and recommend the perfect products to get the job done. Our warehouse is stocked and all items are generally ready to ship the same day. Contact us at sales@cableprotectorworks.com for assistance.

How to Choose a Cable Ramp

How many channels do you need?
What is the outer diameter of the cable going into the channel?
Do you need a specific weight rating or load capacity?
What length of protection do you need?
Do you need hi-visibility colors?
Will you need to provide ADA access?
Material must be polyurethane, Never Plastic or rubber
Choose a Made in the USA brand like Elasco Products

Advantages of Polyurethane Cable Protectors

Polyurethane has overtaken rubber in popularity for commercial cable ramps, and the reasons speak for themselves:

Polyurethane weighs 75% less than rubber
It holds up really well under use and abuse
It has a higher load bearing capacity than rubber
It has great oil, chemical, fuel and lubricant resistance
It is UV stable so it can be used indoors or outside
It has a broad range of hardness, which means it can be used in a greater variety of applications than rubber
Metal solutions weigh more, are difficult to handle, create noise and are not corrosion resistant.
Polyurethane will outperform plastic, rubber and metal every time!

How to Choose an EXIT Sign

What viewing distance is required? 50ft, 75ft, or 100ft?
What color is required? Choose from Silver, Red, Black, Green or Gray
Does the sign need to be Single or Double Sided?
Will the sign be mounted flat on a wall, flag / pole mount or ceiling mounted?
What color frame is required? Silver, Black, White, Gray?
How many signs do you need?
Choose Aluminum signs over cheap plastic. Our signs will last forever.
Choose a Made in the USA brand like Elasco Products

Advantages of Non-Electric Glow EXIT Signs

Aluminum Non-Electric Photoluminescent EXIT Signs are the gold standard.

Zero maintenance
Lowest installation cost
Lowest overall cost with no wiring or power required
Very long lifespan, expected over 25 years.
Zero disposal fees
No running costs of electricity
Failsafe in an emergency

How to Choose a Wheel Chock

How large are the wheels? What is the diameter?
Do you need a specific weight rating or load capacity?
What type of wheel do you need to chock? Truck/Vehicle or Aircraft?
How many chocks do you need? How many wheels are there?
Do you need hi-visibility colors?
Material must be polyurethane, Never Plastic or rubber
Choose a Made in the USA brand like Elasco Products

Advantages of Urethane Wheel Chocks

Urethane Wheel Chocks outperform Plastic and Rubber

Physically Stronger - higher load capability
Withstands long periods of sunshine and the elements
No odor like rubber and plastic
Life span exceeds 25 years
High Visibility Colors of Yellow and Orange increase safety
Cost effective vs. metal chocks

Why Do We Cover Cords and Cables?

By covering your cables, you are not only protecting your valuable power, telephone, ethernet and other lines from getting damaged when equipment drives over them, you are also ensuring that employees, visitors and pedestrians won't be as likely to injure themselves. Each cable cover system we sell has a non-slip textured design to improve footing and traction, and most come in high-visibility yellow or orange. Our cable ramps are easy to set up and maintain, while our discount prices are more than worth it to have fewer injuries and potential liability claims.
